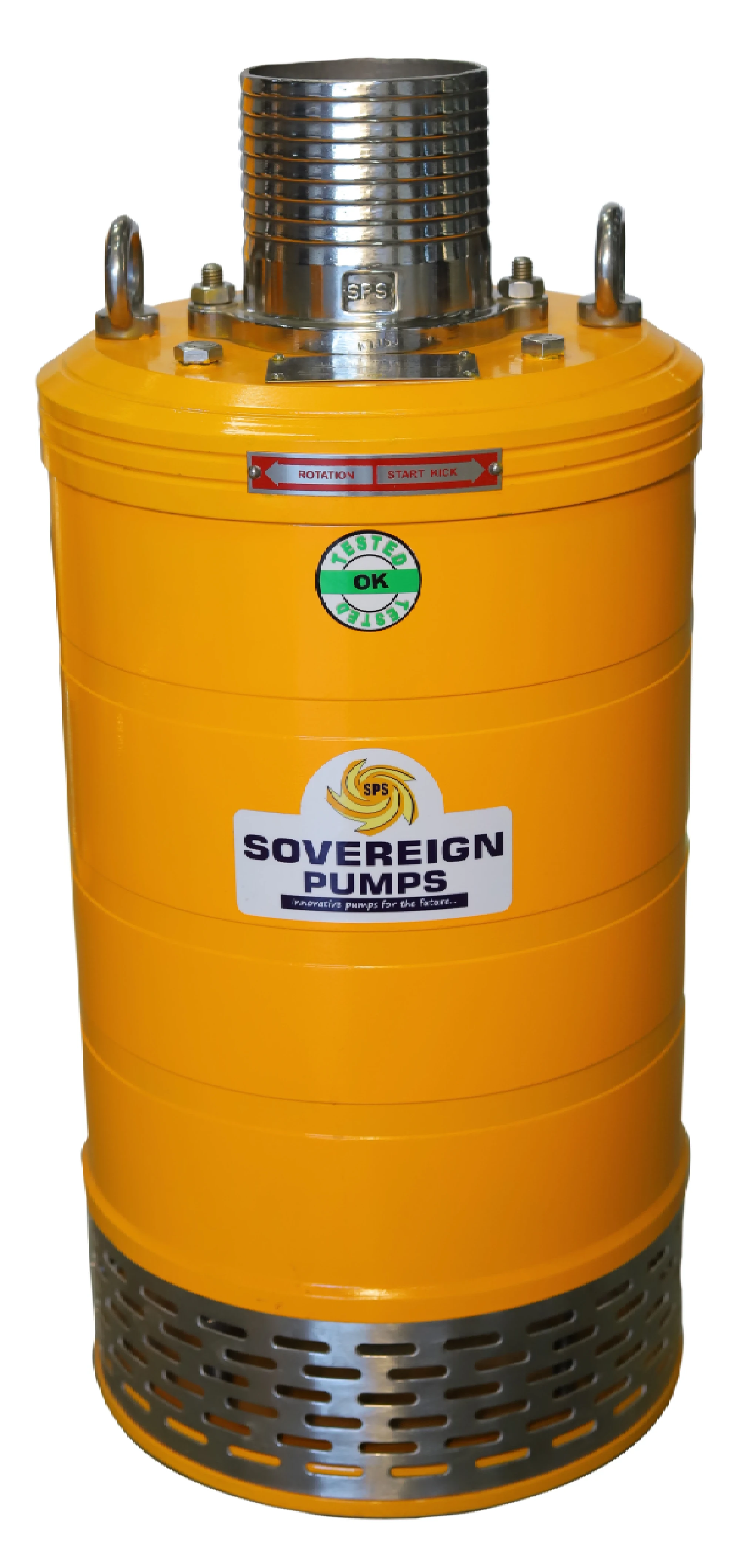

SPG53L(5 HP)
Overview
Applications of SPG53L Submersible Electrical Dewatering Pump
The SPG53L Submersible Electrical Dewatering Pump is suitable for efficient water extraction and drainage across a wide range of demanding environments. It can be used in construction, industrial, mining, marine, and infrastructure projects where excess water needs to be removed to maintain efficient and safe operations.
Key Application Areas
-
Construction Site Dewatering – Suitable for removing accumulated water from excavation zones, foundation pits, trenches, and construction work areas.
-
Civil & Public Utility Projects – Useful for drainage operations during municipal works, utility projects, infrastructure development, and other civil engineering activities.
-
Flood & Waterlogging Control – Helps clear unwanted water from flooded locations, waterlogged sites, and areas experiencing significant water accumulation.
-
Hydropower & Power Infrastructure – Can be utilized for drainage requirements in hydroelectric power stations and related operational areas.
-
Basement & Underground Drainage – Effective for evacuating standing water from basements, underground chambers, service areas, and other below-ground locations.
-
Marine & Shipyard Operations – Appropriate for drainage work involving ships, docks, shipyards, and marine maintenance facilities.
-
Mining & Excavation Work – Supports dewatering during mining preparation, excavation, site development, and related underground activities.
-
Tunnel & Trench Applications – Helps manage water collected in tunnels, trenches, shafts, and other underground construction environments.
-
Open Sumps & Water Collection Points – Suitable for pumping accumulated water from open sumps, pits, collection areas, and temporary drainage locations.
-
Industrial & Commercial Water Removal – Can be applied to general drainage, water transfer, and dewatering requirements in industrial and commercial facilities.
The SPG53L Submersible Electrical Dewatering Pump is a practical choice for construction dewatering, industrial drainage, flood water removal, basement drainage, mining operations, tunnel dewatering, and general water management applications.
4″(100mm) Hose Outlet (BSP/NPT/Flange outlet available on request.)
Options for Impeller MOC:
a) For abrasive and corrosion resistance application impeller are in ASTM A217 Gr. CA15 (SS 410)
b) For Sea water and Corrosive application impeller available on request in ASTM A351 Gr. CF8M (SS 316)
SS 304 Strainer, Outlet, Hardware and SS 431 Rotor Shaft.
Tandem TC/TC mechanical seals enclosed in pressure compensated oil chamber.
Thermal Cutouts are imbedded in motor winding for maximum protection.
Nitrile rubber lined diffuser and wear plate for field adjustment.
For saline environment Zinc Anode are available.
Pumps are also available in complete SS 316 construction.
Pumps are available for any combination of voltage and frequency on request.
The Pump is epoxy coated for long life.
