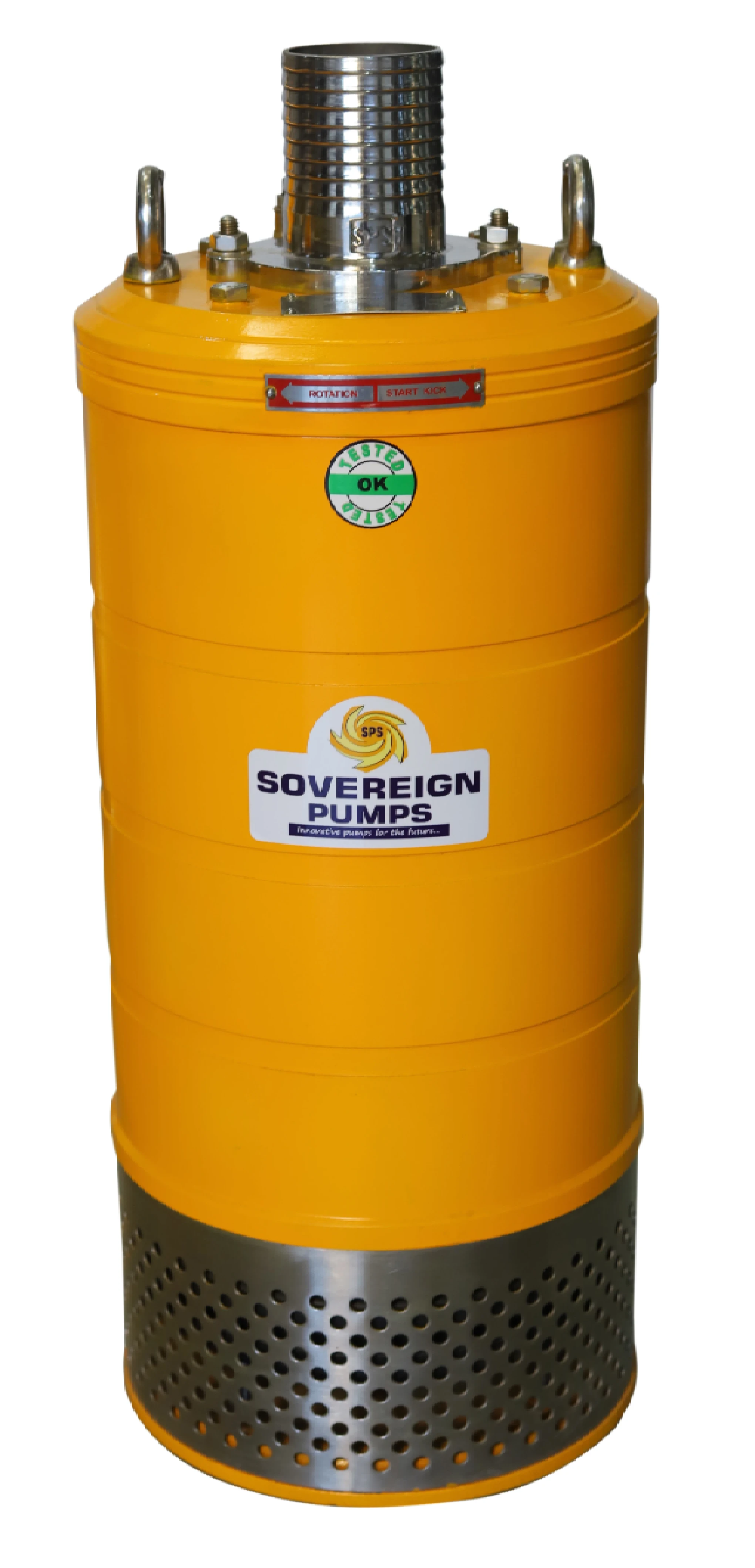

SPG53H(5H.P)
Overview
Applications of SPG53H Submersible Electrical Dewatering Pump
The SPG53H Submersible Electrical Dewatering Pump is designed for dependable water drainage and dewatering in demanding work environments. It can be used across construction, infrastructure, mining, marine, power, and industrial applications where efficient removal of excess or accumulated water is required.
Key Application Areas
-
Construction & Infrastructure Development – Suitable for draining water from excavation sites, foundation pits, construction zones, and civil engineering projects.
-
Public Utility & Municipal Works – Helps manage water during utility installation, drainage projects, and other public infrastructure activities.
-
Flood Water & Emergency Drainage – Useful for clearing accumulated water from flooded areas, waterlogged sites, and locations affected by excessive water ingress.
-
Hydroelectric Power Stations – Appropriate for drainage and dewatering operations in hydropower plants and associated facilities.
-
Basement & Underground Areas – Can be used to remove standing water from basements, underground chambers, service spaces, and other low-level locations.
-
Ships & Shipyard Facilities – Suitable for water removal and drainage work in vessels, shipyards, docks, and marine maintenance areas.
-
Mining & Excavation Applications – Supports dewatering activities during mining preparation, excavation, site development, and related operations.
-
Tunnels & Trenches – Helps control water accumulation in tunnels, trenches, shafts, and underground construction areas.
-
Open Sumps & Drainage Pits – Suitable for extracting collected water from open sumps, pits, collection points, and temporary drainage areas.
-
Industrial Water Management – Can be applied to general water drainage, dewatering, and transfer requirements in industrial and commercial facilities.
The SPG53H Submersible Electrical Dewatering Pump provides a reliable solution for construction dewatering, industrial drainage, flood water evacuation, basement drainage, mining applications, tunnel dewatering, and general water management requirements.
3″ (75 mm) Hose Outlet (BSP/NPT/Flange Outlet available on request)
Options for Impeller MOC:
a) For abrasive and corrosion resistance application impeller are in ASTM A217 Gr. CA15 (SS 410)
b) For Sea water and Corrosive application impeller available on request in ASTM A351 Gr. CF8M (SS 316)
SS 304 Strainer, Outlet, Hardware and SS 431 Rotor Shaft.
Tandem TC/TC mechanical seals enclosed in pressure compensated oil chamber.
Thermal Cutouts are imbedded in motor winding for maximum protection.
Nitrile rubber lined diffuser and wear plate for field adjustment.
For saline environment Zinc Anode are available.
Pumps are also available in complete SS 316 construction.
Pumps are available for any combination of voltage and frequency on request.
The Pump is epoxy coated for long life.
