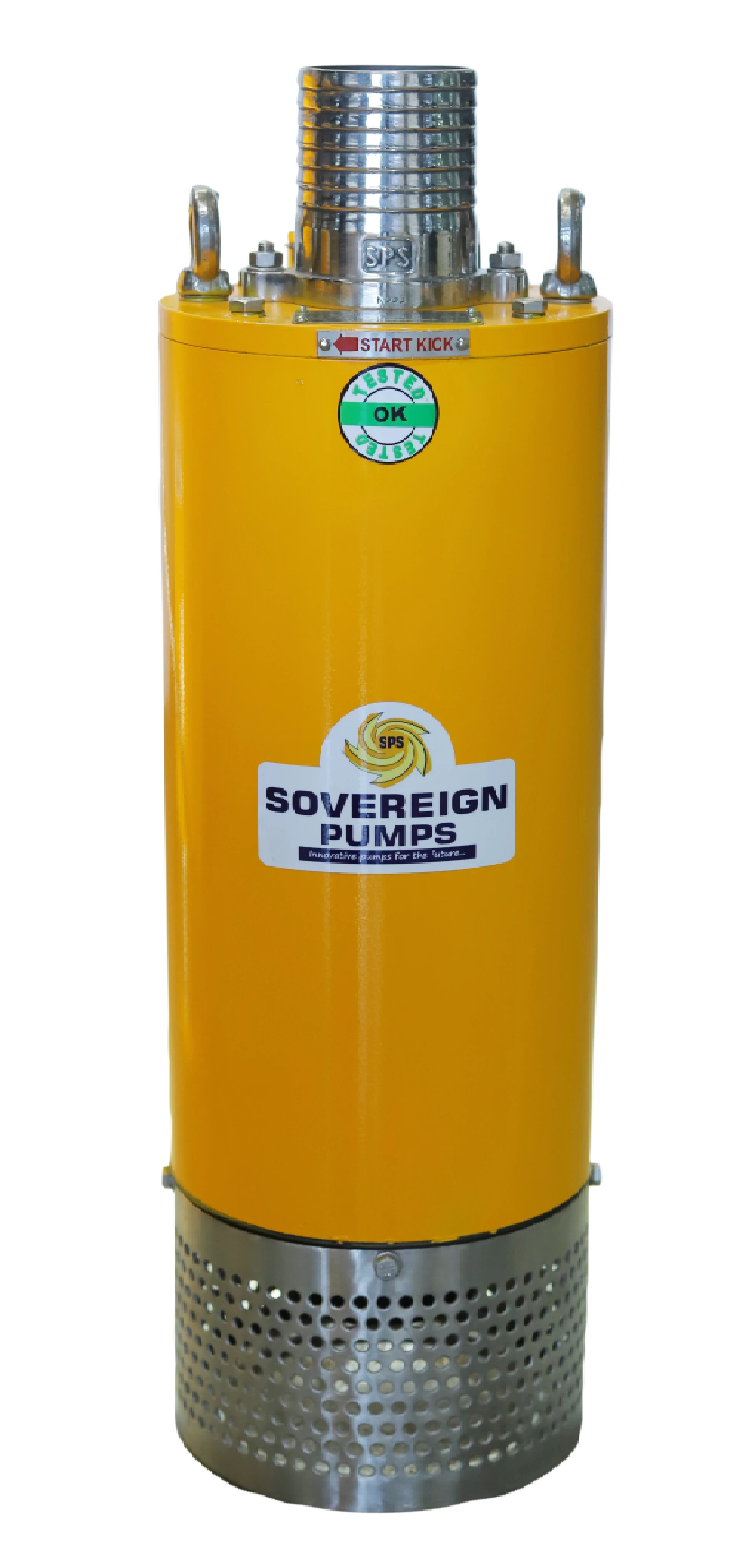

SPG32MS(3 H.P)
Overview
Applications of SPG32MS Submersible Electrical Dewatering Pump
The SPG32MS Submersible Electrical Dewatering Pump is developed for effective water evacuation in challenging working environments. It is suitable for a variety of construction, infrastructure, mining, marine, and industrial applications where dependable drainage and water control are essential.
Key Application Areas
-
Construction & Foundation Work – Helps maintain dry working conditions by removing water from foundation pits, excavations, trenches, and construction areas.
-
Public Infrastructure & Utility Projects – Suitable for drainage requirements during municipal works, utility installation, and infrastructure development.
-
Flood Water Removal – Useful for clearing excess water from flooded premises, waterlogged locations, and areas affected by heavy water accumulation.
-
Hydroelectric Power Plants – Can be utilized for dewatering and drainage operations in hydropower stations and related facilities.
-
Basement & Underground Locations – Appropriate for removing standing water from basements, underground chambers, service areas, and other low-level spaces.
-
Marine & Shipyard Applications – Suitable for drainage operations in vessels, shipyards, docks, and marine maintenance facilities.
-
Mining & Site Excavation – Supports water removal during mining preparation, excavation, and other preliminary site development activities.
-
Tunnel & Trench Drainage – Helps manage water accumulation in tunnels, trenches, shafts, and underground construction zones.
-
Open Sump & Pit Dewatering – Designed for extracting collected water from open sumps, drainage pits, collection points, and similar areas.
-
Industrial & Commercial Drainage – Can be applied to water removal, drainage, and transfer requirements in industrial plants, commercial sites, and other facilities.
The SPG32MS Submersible Electrical Dewatering Pump offers a reliable solution for construction dewatering, industrial drainage, flood water evacuation, basement water removal, mining dewatering, tunnel drainage, and general water management applications.
3″ (75 mm) Hose Outlet (BSP/NPT/Flange Outlet available on request)
Options for Impeller MOC:
a) For abrasive and corrosion resistance application impeller are in ASTM A217 Gr. CA15 (SS 410)
b) For Sea water and Corrosive application impeller available on request in ASTM A351 Gr. CF8M (SS 316)
SS 304 Strainer, Outlet, Hardware and SS 431 Rotor Shaft.
Tandem TC/TC mechanical seals enclosed in pressure compensated oil chamber.
Thermal Cutouts are imbedded in motor winding for maximum protection.
Nitrile rubber lined diffuser and wear plate for field adjustment.
For saline environment Zinc Anode are available.
Pumps are also available in complete SS 316 construction.
Pumps are available for any combination of voltage and frequency on request.
The Pump is epoxy coated for long life.
