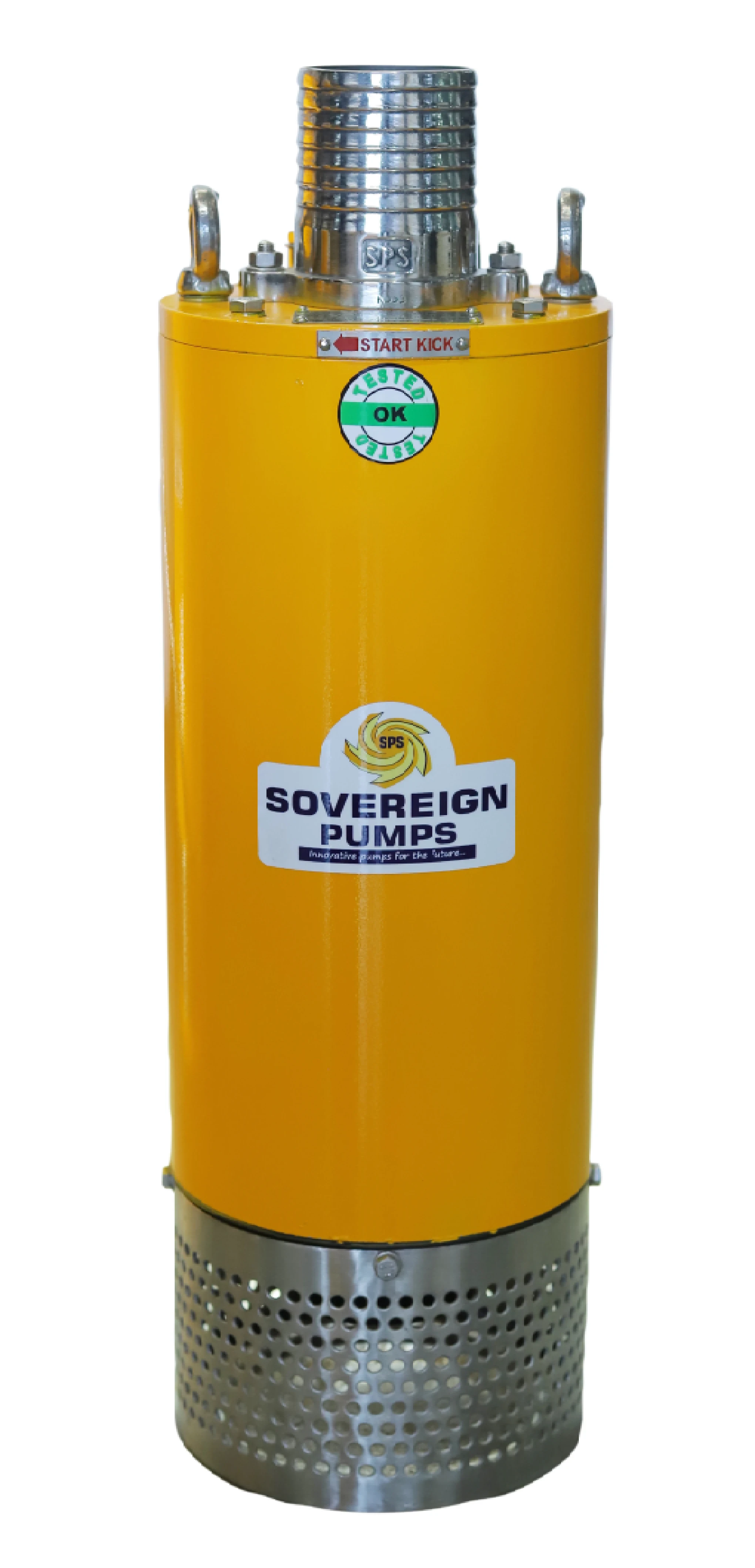

SPG22MS(2HP)
SUBMERSIBLE ELECTRICAL DEWATERING PUMP

SPG22MS(2HP)

Overview

Applications of SPG22MS Submersible Electrical Dewatering Pump

The SPG22MS Submersible Electrical Dewatering Pump is designed for efficient water removal and drainage in demanding industrial, commercial, and infrastructure environments. Its compact and reliable design makes it suitable for handling accumulated water from construction sites, underground areas, utility projects, and other dewatering applications.

Key Application Areas

  • Construction & Infrastructure Projects – Suitable for removing unwanted water from construction sites, excavations, and work areas.

  • Public Utility Projects – Used for drainage and water management during utility and municipal works.

  • Emergency & Fire Service Operations – Helpful for rapid water removal during emergency situations and firefighting support activities.

  • Hydroelectric Power Facilities – Suitable for drainage requirements in hydro power stations and related infrastructure.

  • Basement & Underground Dewatering – Ideal for pumping out water from flooded basements, underground spaces, and low-lying areas.

  • Marine & Shipyard Applications – Can be used for drainage operations in ships, docks, shipyards, and marine working environments.

  • Mining Site Preparation – Supports preliminary dewatering requirements during mining and excavation activities.

  • Tunnels & Trenches – Effective for controlling accumulated water in tunnels, trenches, shafts, and excavation zones.

  • Open Sumps & Collection Pits – Designed for efficient water extraction from open sumps and collection areas.

  • Water Supply & Drainage Systems – Suitable for various water transfer, drainage, and water management applications.

The SPG22MS offers a practical solution for industrial dewatering, construction site drainage, basement water removal, tunnel dewatering, and general water pumping requirements.

3″ (75 mm) Hose Outlet (BSP/NPT/Flange Outlet available on request)

Options for Impeller MOC:

a) For abrasive and corrosion resistance application impeller are in ASTM A217 Gr. CA15 (SS 410)

b) For Sea water and Corrosive application impeller available on request in ASTM A351

SS 304 Strainer, Outlet, Hardware and SS 431 Rotor Shaft.

Tandem TC/TC mechanical seals enclosed in pressure compensated oil chamber.

Thermal Cutouts are imbedded in motor winding for maximum protection.

Nitrile rubber lined diffuser and wear plate for field adjustment.

For saline environment Zinc Anode are available.

Pumps are also available in complete SS 316 construction.

Pumps are available for any combination of voltage and frequency on request.

The Pump is epoxy coated for long life.
