Diaphragm Pump Priming

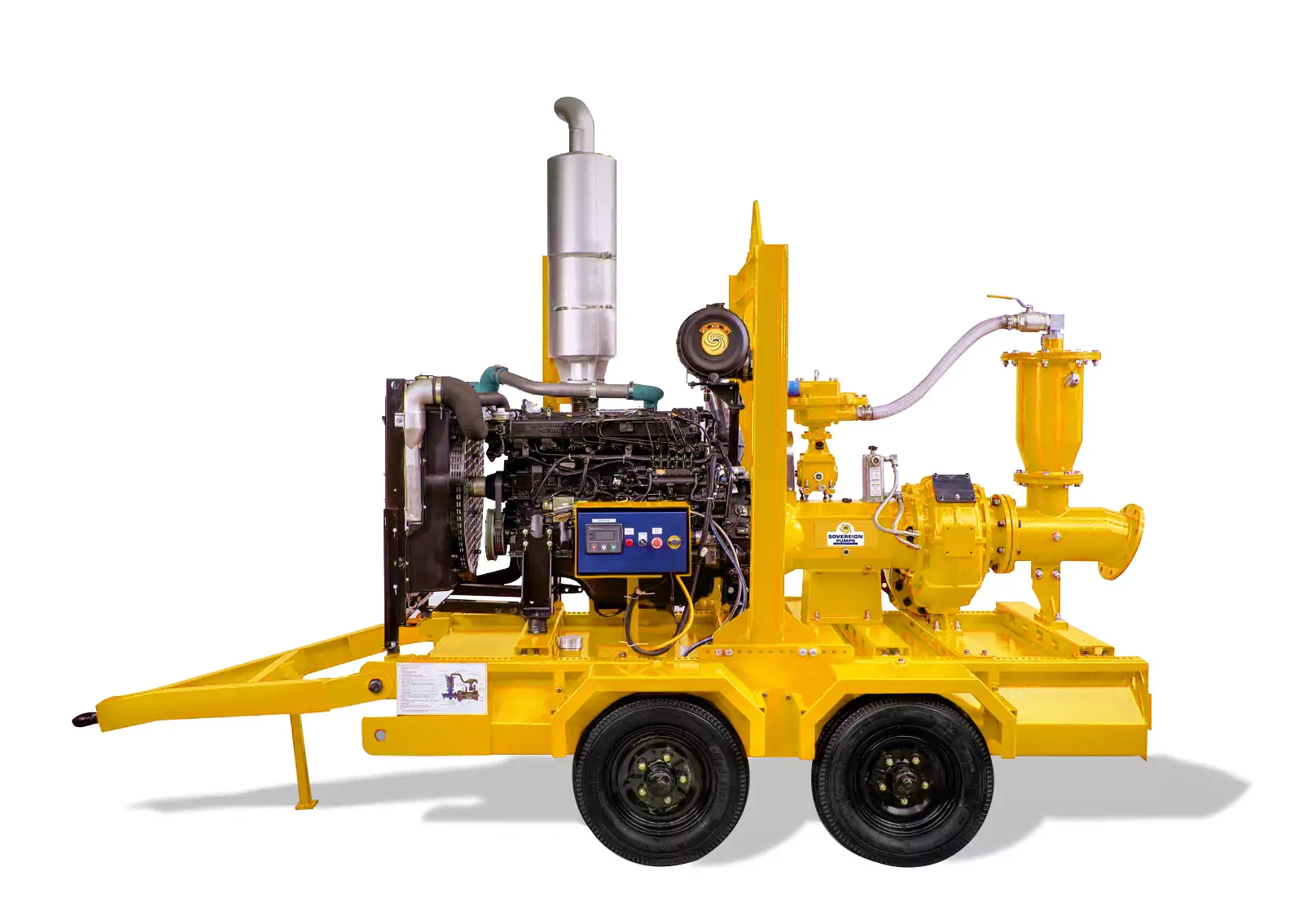

DIESEL DRIVEN PUMP
EDP-DP-12
Overview
| STANDARDS | MATERIAL | STANDARDS | MATERIAL |
|---|---|---|---|
| Impeller | SS 316L | Front Wear Plate | SS 316L |
| Tee Piece | SG 500/7 | Rear Back Plate | SG 500/7 |
| Air & Water Separator | SG 500/7 | Pump Shaft | SS 431 / Duplex |
| Pump Casing (Volute) | SG Iron 500/7 | Mechanical Seal | SIC - Viton |
| Back Plate | SG 500/7 | Bearing Housing | FG260 |
| Bell Housing to engine | FG260 | Coupling | SAE 1,2,3 |
| Bell Housing to Volute | FG 260 | Non Return Valve | Cast Iron |
